高压发电机组（6~11kV）


BAIFA高压系列发电机组，发电机的额定电压主要有6300V和10500V。也可根据用户要求，设计其他频率和电压等级。按机组型式可分为：

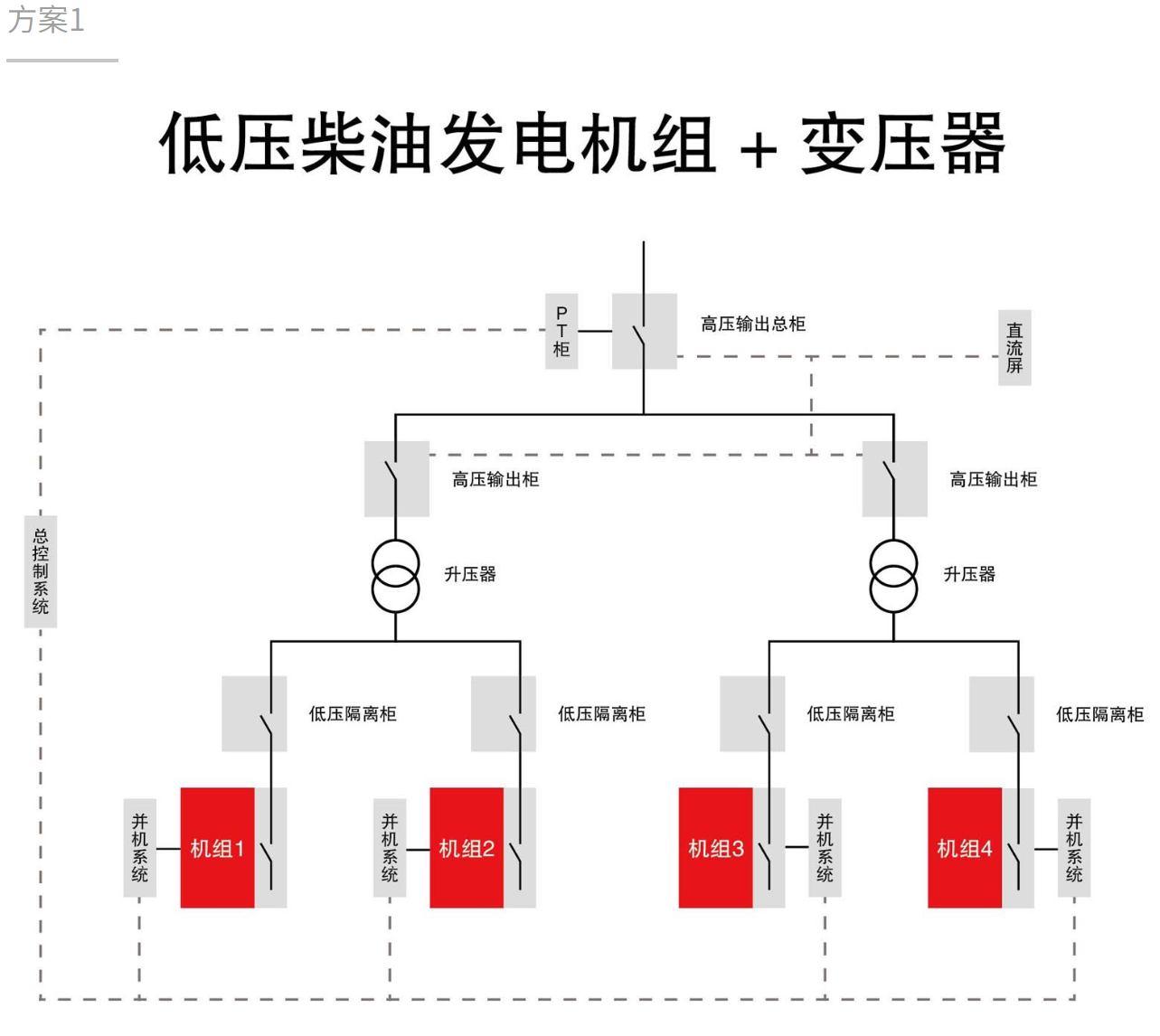

1.柴油机+低压发电机+升压变压器，该套方案涉及主要设备有：柴油发电机组+输出开关、发电机组并机系统、隔离开关、升压变压器、高压输出柜、直流屏、高压输出总柜、总控制柜（当机组超过2台时）。

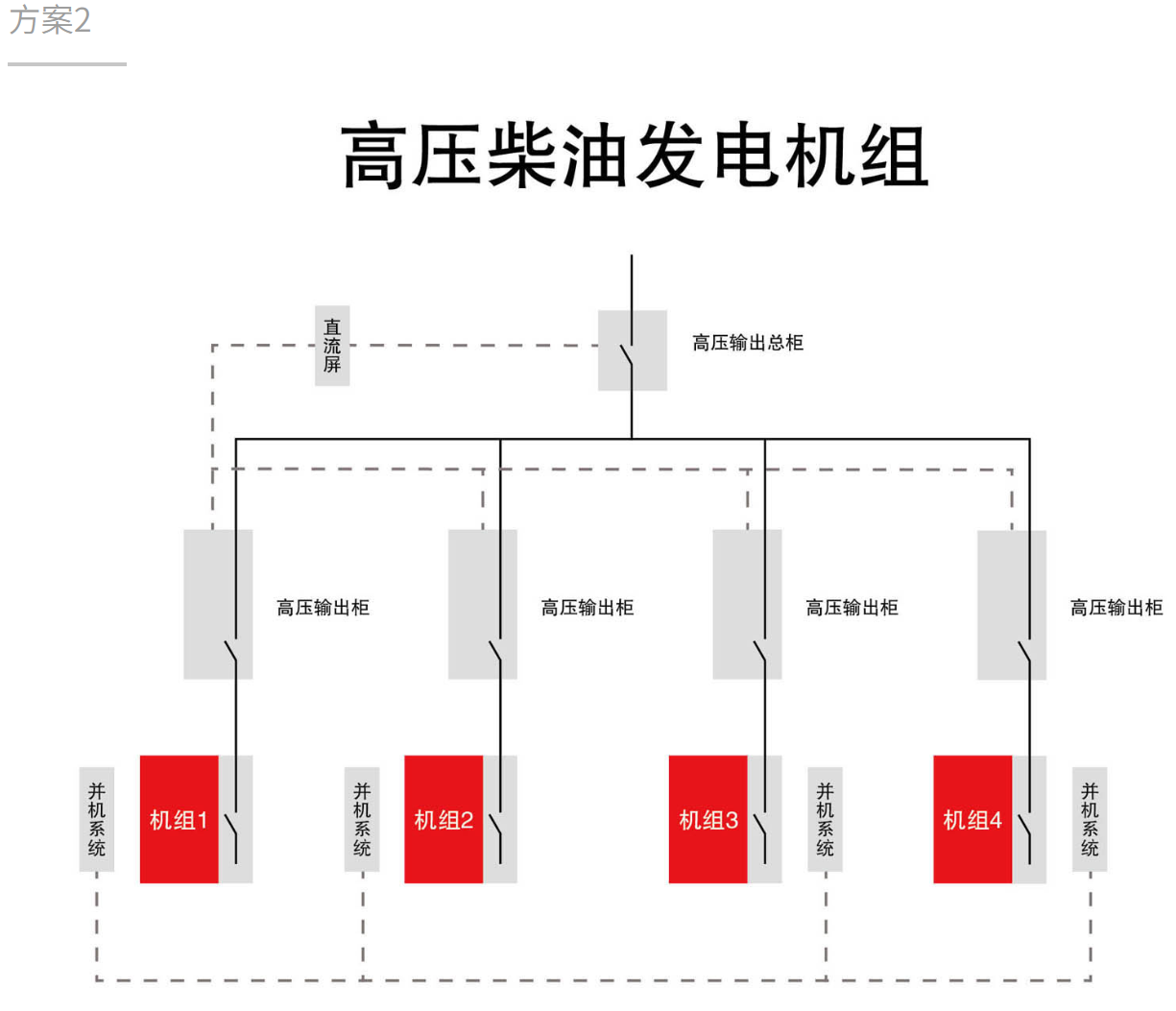

2.柴油机+高压发电机，该套方案涉及主要设备有：高压柴油发电机组、高压输出开关、发电机组并机系统、直流屏、高压输出总柜、总控制柜（当机组超过2台时）。

50HZ3300VMEDIUMVOLTAGEGENERATOR
LEORY-SOMER			STAMFORD
MODELS	RATEDPOWER(KW)40℃		MODELS	RATEDPOWER(KW)40℃	MODELS	RATEDPOWER(KW)40℃
	ClassF	ClassH		ClassH		ClassH
	3300V			3300V		3300V
LSA52.2L45	1000	1049
LSA52.2VL55	1104	1159
LSA52.2VL60	1200	1260
LSA52.2XL65	1288	1352
LSA52.2XL80	1600	1680
LSA53.2M7	1680	1764
LSA53.2VL8	1880	1973			S9H1D-B4	1904
LSA53.2VL10	2160	2268	MV804R	2120	S9H1D-C4	2120
LSA53.2VL10	2160	2268	MV804S	2320	S9H1D-D4	2320
LSA53.2XL13	2480	2604	MV804T	2528	S9H1D-E4	2528
LSA53.2XL14	2680	2813	MV804W	2974	S9H1D-F4	2976
LSA54.2VL7	2240	2352	MV804X	3402	S9H1D-D4	2320
LSA54.2VL9	2440	2561			S9H1D-E4	2528
LSA54.2XL11	2880	3024			S9H1D-F4	2976
LSA54.2XL13	3200	3360			S9H1D-G4	3404
LSA54.2ZL15	3440	3612			S9H1D-H4	3680

50HZ6000~6600VHIGHVOLTAGEGENERATOR
MARATHON						LEORY-SOMER					STAMFORD
MODELS		RATEDPOWER （KW)40℃				MODELS	RATEDPOWER (KW)40℃				MODELS	RATEDPOWER (KW)	RATEDPOWER (KW)40℃	MODELS	RATEDPOWER (KW)40℃
MODELS		ClassF	ClassH	ClassF	ClassH		ClassF	ClassH	ClassF	ClassH		ClassF40℃	ClassF		ClassH
SINGLEBEARING	DOUBLEBEARING	6300V		6600V			6000V		6300/6600V			6300V	6600V		6300V
742FSMC432	742FDMC432	700	770	730	800
743FSMC434	743FDMC434	925	1000	925	1000	LSA52.2L45	1000	1049	1000	1049
743FSMC436	743FDMC436	1120	1200	1120	1200	LSA52.2VL55			1104	1159
743FSMC436	743FDMC436					LSA52.2VL60	1104	1159
743FSMC436	743FDMC436					LSA52.2XL65	1216	1276	1288	1352
743FSMC438	743FDMC438	1220	1320	1240	1340	LSA52.2XL65	1216	1276	1288	1352
744FSMC440	744FDMC440	1400	1520	1400	1520	LSA52.2XL70			1440	1512
744FSMC440	744FDMC440	1400			1520	LSA52.2XL75	1440	1512
744FSMC442	744FDMC442	1410	1640	1430	1620	LSA52.2XL70			1440	1512
744FSMC442	744FDMC442					LSA52.2XL75			1440	1512
744FSMC442	744FDMC442					LSA52.2XL80	1600	1680	1600	1680
862FSMC432	862FDMC432	1460	1620	1460	1620	LSA52.2XL80	1600	1680	1600	1680
862FSMC434	862FDMC434	1650	1820	1650	1820	LSA53.2M7	1680	1764	1680	1764				S9H1D-B4	1720
863FSMC436	863FDMC436	1820	2000	1820	2000	LSA53.2VL8	1880	1973	1880	1973	HVSI804R	1718	1800	S9H1D-C4	1924
863FSMC438	863FDMC438	2000	2200	2050	2240	LSA53.2VL10	2160	2268	2160	2268	HVSI804S	1924	2016	S9H1D-D4	2196
1020FSH1228	1020FDH1228	2440	NA	2430	NA	LSA53.2XL13	2480	2604	2480	2604	HVSI804T	2195	2300	S9H1D-E4	2604
1020FSH1228	1020FDH1228	2440		2430		LSA54.2VL7	2240	2352	2240	2352
1020FSH1228	1020FDH1228	2440		2430		LSA54.2VL9	2440	2561	2440	2561				S9H1D-E4	2604
1030FSH1230	1030FDH1230	2630		2590
1040CSH1232	1040CDH1232	2810		2750		LSA54.2XL11	2880	3024	2880	3024	HVSI804W	2604	2728	S9H1D-F4	2960
1040CSH1234	1040CDH1234	3190		3100		LSA54.2XL13	3200	3360	3200	3360	HVSI804X	2959	3100	S9H1D-G4	3236
						LSA54.2ZL15	3440	3612	3440	3612				S9H1D-H4	3560

50HZ10000V/10500V/11000VHIGHVOLTAGEGENERATOR
MARATHON				LEORYSOMER				STAMFORD
MODELS		RATEDPOWER(KW)	MODELS	RATEDPOWER(KW)40℃				MODELS	RATEDPOWER(KW)40℃		MODELS	RATEDPOWER(KW)40℃
MODELS		ClassF40℃		ClassF	ClassH	ClassF	ClassH		ClassF	ClassH		ClassF	ClassH
SINGLEBEARING	DOUBLEBEARING	10000V/10500V/11000V		10000V		10500V/11000V			10500V	11000V		10500V/11000V
743FSHA804	743FDHA804	650
743FSHA806	743FDHA806	850	LSA52.2ZL50	800	840	800	840				S7H1D-C4	800	864
											S7H1D-D4	900	976
743FSHA808	743FDHA808	1000	LSA52.2ZL60	1000	1049	1000	1049				S7H1D-E4	1000	1080
743FSHA808	743FDHA808	1000	LSA52.2ZL65	1064	1116	1064	1116				S7H1D-E4	1000	1080
744FSHA810	744FDHA810	1200	LSA52.2ZL70	1200	1260	1200	1260				S7H1D-F4	1200	1300
862FSHA812	862FDHA812	1400	LSA53.2VL6	1320	1385	1440	1512
862FSHA812	862FDHA812	1400	LSA53.2VL7	1480	1553
862FSHA814	862FDHA814	1600	LSA53.2VL7			1600	1680				S9H1D-B4	1688	1840
862FSHA816	862FDHA816	1800	LSA53.2XL9	1720	1805	1840	1932	HVSI804R	1734	1816	S9H1D-C4	1851	2012
863FSHA818	863FDHA818	2000	LSA53.2XL11	1960	2057	2080	2184	HVSI804S	1921	2012	S9H1D-D4	2090	2272
863FSHA818	863FDHA818	2000	LSA54.2XL7	1960	2057	2080	2184		1921	2012		2090	2272
863FSHA820	863FDHA820	2200	LSA53.2ZL12	2120	2225	2240	2352	HVSI804T	2169	2272
863FSHA820	863FDHA820	2200	LSA53.2ZL14	2280	2393
863FSHA820	863FDHA820	2200	LSA54.2XL9	2280	2393
1030FSH1255	1030FDH1255	2400	LSA53.2ZL14			2400	2520				S9H1D-E4	2399	2608
1030FSH1255	1030FDH1255	2400	LSA54.2XL9			2400	2520				S9H1D-E4	2399	2608
1030FSH1255	1030FDH1255	2400	LSA54.2XL11	2480	2604
1030FSHC856	1030FDHC856	2500	LSA54.2XL11			2600	2729	HVSI804W	2489	2607
1040CSH1258	1040CDH1258	2750	LSA54.2ZL12	2760	2897	2880	3024				S9H1D-F4	2742	2980
1040CSH1260	1040CDH1260	3050	LSA54.2ZL14	3080	3233	3200	3360	HVSI804X	2844	2979	S9H1D-G4	2988	3248
			LSA54.2AL16	3480	3653	3600	3780				S9H1D-H4	3312	3600
