并机柜



SYCHRONISE PANEL OR OUTPUT PANEL
ITEM MODEL BREAKER
SYCHRONISE PANEL
Using DSE8610; DEIF AGC150, or ComAp IC-NT auto parallel control system, one panel mounted on each genset, easy for single running and synchronizing.
Output Current ABB Breaker 3P CHNT Breaker  3P
≤400A ABB  T5N-400P/MOE
630A ABB  T5N-630P/MOE
800A ABB  T6N-800P/MOE

1000A ABB   T7S-1000A/(M220/T7M) MOE
1000A ABB  XIB 1000  R1000 ACB
1250A ABB  T7S-1250A/(M220/T7M) MOE
1600A ABB  T7S-1600A/(M220/T7M) MOE
2000A ABB   E2B 2000/R2000  ACB NXA20N20-MF3-AC230+SHUNT TRIP ACB
2500A ABB   E2B 2500/R2500   ACB NXA32N25-MF3-AC230+SHUNT TRIP ACB
3200A ABB   E4N 3200/R3200   ACB NXA32N32-MF3-AC230+SHUNT TRIP ACB
4000A ABB   E4S 4000/R4000   ACB NXA40N40-MF3-AC230+SHUNT TRIP ACB
5000A ABB   E6H  5000/R5000  ACB NXA63H50-MF3-AC230+SHUNT TRIP ACB
OUTPUT PANEL
Output Current ABB Breaker 3P CHNT Breaker 3P
2000A ABB   E2B 2000/R2000   ACB NXA20N20-MF3-AC230+SHUNT TRIP ACB
2500A ABB   E2B 2500/R2500   ACB NXA32N25-MF3-AC230+SHUNT TRIP ACB
3200A ABB   E4N 3200/R3200   ACB NXA32N32-MF3-AC230+SHUNT TRIP ACB
4000A ABB   E4S 4000/R4000   ACB NXA40N40-MF3-AC230+SHUNT TRIP ACB
5000A ABB   E6H  5000/R5000  ACB NXA63H50-MF3-AC230+SHUNT TRIP ACB

* BREAKERS ALSO AVAIBLE IN 4 POLE



SYCHRONISE/PARALLEL PANEL

Using DEIF AGC150, DSE8610 or ComAp IC-NT auto parallel control system, one panel mounted on each genset, easy for single runging and synchronizing.
SYCHRONISE CONTROLLER DEEPSEA DSE8610 c42032d2ccff5fecd022b938f94aede5_3acef158-4232-4823-8844-b0991838aed0.png

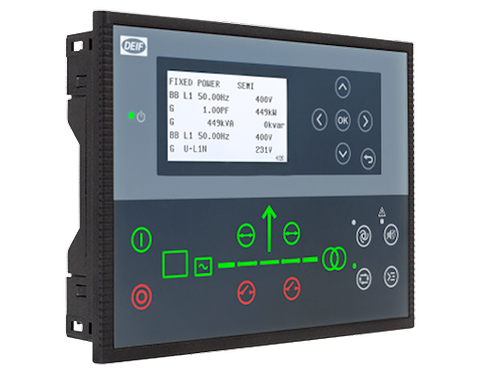

DEIF AGC150 3e53a6c991de251692eb20e08a418e22_fa439f22-7a0f-47a7-8a7b-f28b532c9579.png
COMAP IC-NT a06a7abc6d9298eda9434b83906846b1_bc6c4f0e-6a99-4fd6-ae38-a3f2bafa9096.png
Output
     Current
ABB BREAKER 3P /4P CHINT BREAKER 3P /4P
Breaker Model Breaker Model
≤400A ABB  T5N-400P/MOE MOTORISED
630A ABB  T5N-630P/MOE MOTORISED
800A ABB  T6N-800P/MOE MOTORISED
1000A ABB   T7S-1000A/MOTORISED(M220/T7M)
1000A ABB  XIB 1000  R1000 ACB
1250A ABB  T7S-1250A/MOTORISED (M220/T7M)
1600A ABB  T7S-1600A/ MOTORISED (M220/T7M)
2000A ABB   E2B 2000/R2000  ACB NXA20N20-MF3-AC230+SHUNT TRIP  ACB
2500A ABB   E2B 2500/R2500  ACB NXA32N25-MF3-AC230+SHUNT TRIP  ACB
3200A ABB   E4N 3200/R3200  ACB NXA32N32-MF3-AC230+SHUNT TRIP  ACB
4000A ABB   E4S 4000/R4000  ACB NXA40N40-MF3-AC230+SHUNT TRIP  ACB
5000A ABB   E6H  5000/R5000 ACB NXA63H50-MF3-AC230+SHUNT TRIP  ACB
< >
